MMS LOW SPEED HIGH TORQUE MOTOR

  1. Home
  2. Models
  3. MMS Series

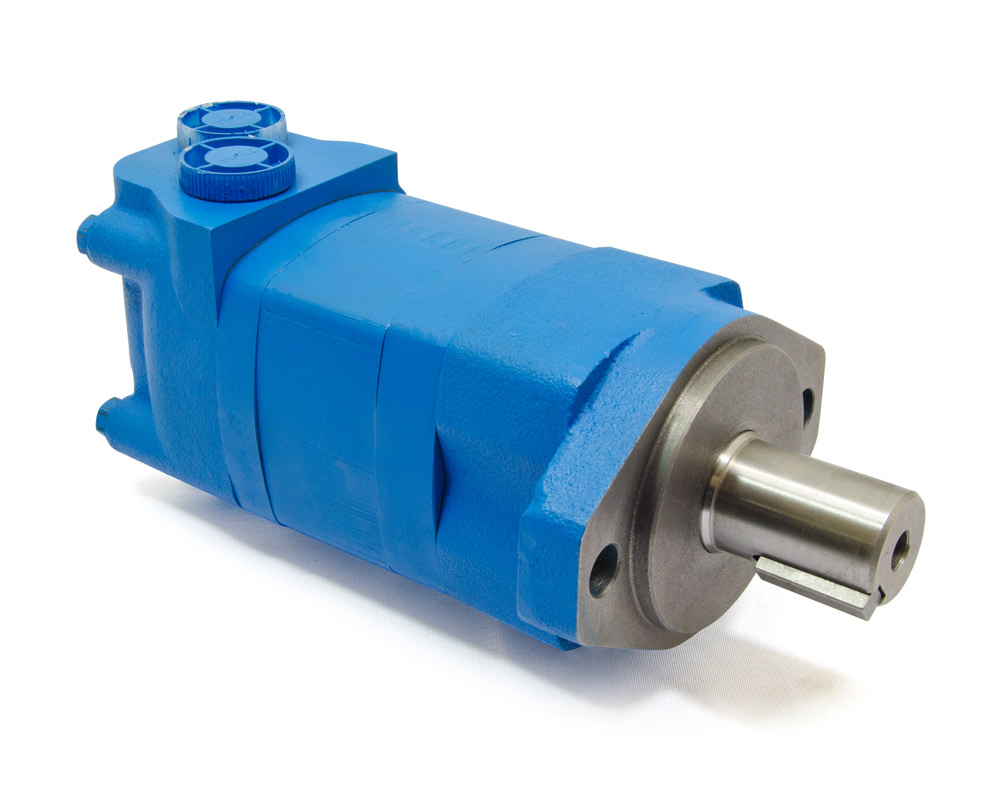

MMS Series Genuine Metaris Orbital Motor painted blue on white background.

METARIS MMS SERIES ORBITAL MOTORS

Genuine Metaris® MMS series motors are disc valve motors that can be used in parallel or series configurations. MMS series orbital motors are available in 9 different displacement sizes with a diverse offering of mounting flanges, shaft configurations and porting options. Form & function replacements for common motors in the market today such as Danfoss®, Char-Lynn®, Parker®and White®.

    Replacements for:
  • Danfoss® OMS Series
  • Char-Lynn® 2000(104-, 105-, 106-) Series
  • Parker® TE, TF Series
  • White® DR(600/620), HB(300), RE(500/501/520/521), WS(350/351/355/356/357/358) Series
CONTACT US TO ORDER
  • Suitable for a variety of applications
  • 9 different gear sizes available
  • Disc Valve distribution type
  • Advanced Roller-Star technology, requiring lower pressure at start-up and providing smoother operation at all speeds
  • High efficiency shaft bearing, which allows higher pressure, speed and radial force
  • Pressures up to 2400 psi
  • Speeds up to 799 rpm
  • Multiple porting options
  • High pressure shaft seal, which allows for higher back pressures and an increased ability to handle high pressure spike conditions
  • Internal integrated check valve, which limits case pressure by blocking the high pressure port side and allowing the motor housing to drain into the outlet (low pressure) port
  • Variety of Mounting Flange and Shaft Options
  • Alternatives for Danfoss®, Char-Lynn®, Parker®, and White®
Model Code (Disp.) Displacement
(in³ / cm³) 		Max RPM Flow
(gpm / lpm) 		Pressure
(PSI / bar)
MMS01 4.9 / 80 799 19.8 / 75 2466 / 170
MMS02 6.1 / 100 742 19.8 / 75 2466 / 170
MMS03 7.9 / 130 576 19.8 / 75 2466 / 170
MMS04 9.8 / 160 477 19.8 / 75 2466 / 170
MMS05 11.9 / 195 385 19.8 / 75 2466 / 170
MMS06 15.0 / 245 308 19.8 / 75 2466 / 170
MMS07 18.6 / 305 246 19.8 / 75 2031 / 140
MMS08 24.1 / 395 191 19.8 / 75 2031 / 140
MMS09 29.9 / 490 153 19.8 / 75 1740 / 120

Values given are based on Continuous operation parameters. Intermittent values are available in the technical catalog.

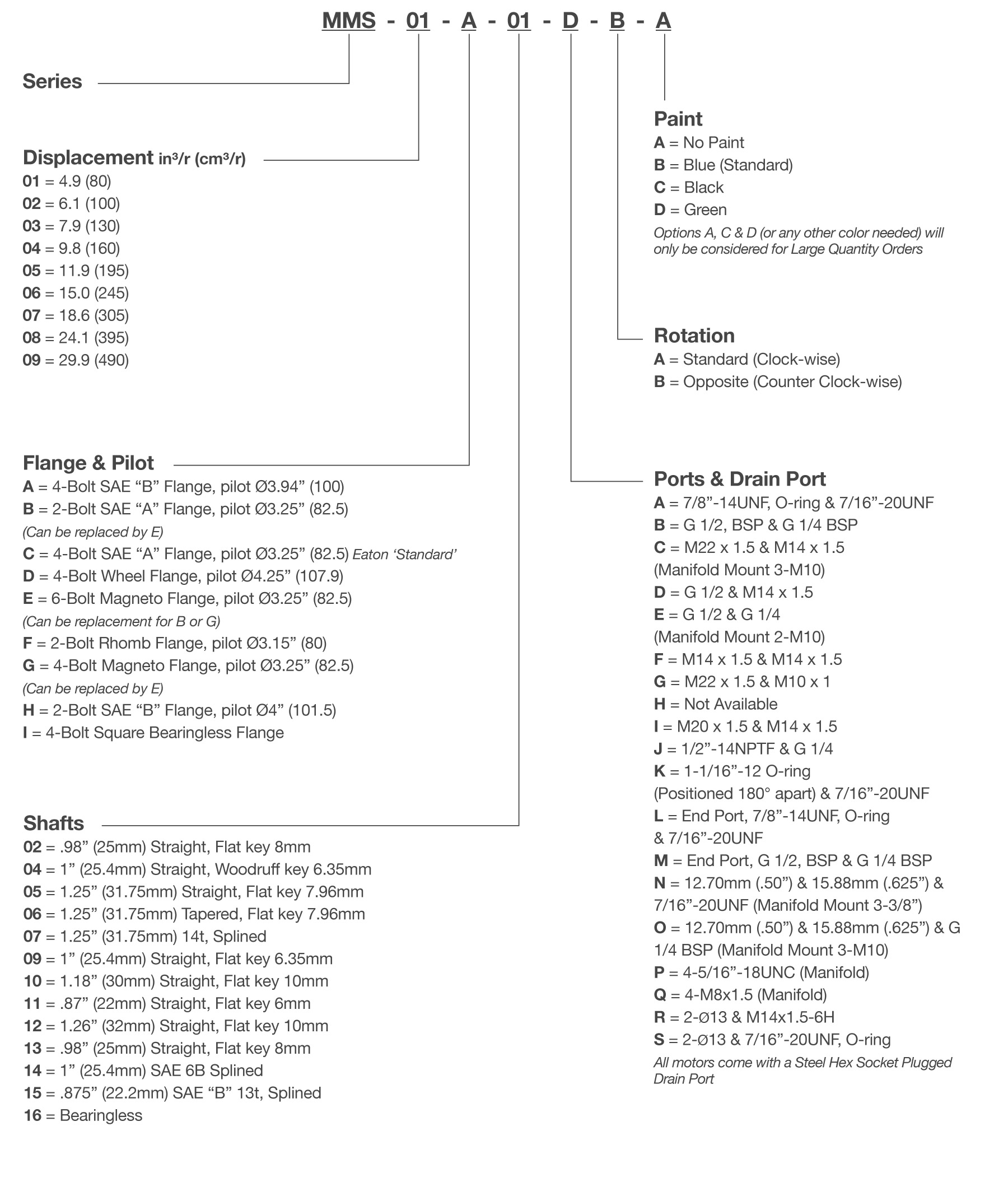

MMS Series Genuine Metaris Orbital Motor model code breakdown.
Our motors are form + function replacements for many common motors. CROSS YOUR MOTOR
